CLEANING PRODUCTS STORAGE LOCKER BEFORE AND AFTER
INTRODUCTION OF BIO CLEANING PRODUCTS

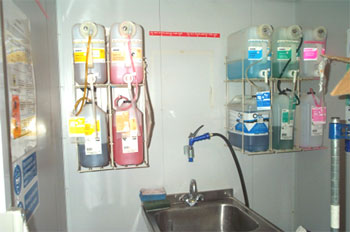

Cleaning Product Storage Locker - Multiple Chemical Mixer Units

Cleaning Product Storage Locker

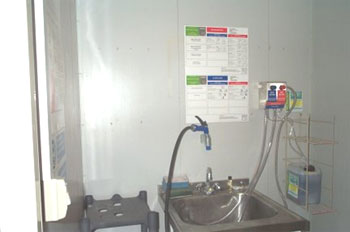

Single Bio Product Mixer Unit replacing all the above
Chemical Mixer Units

Other Installtions
Bio Mixer Unit
Kitchen/Galley
Bio Mixer Unit
Engine Room

Please note that Soltech can supply and install product mixer units on request.

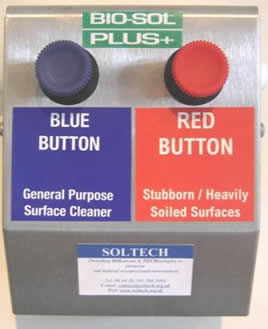

PRODUCT MIXER UNITS

For diluting and mixing of Bio Products

Simple    Reliable    Low Cost





         SPECIAL FEATURES:

           Rigid, dripless low foaming spouts

           Optional molded drip tray

           Compact design-wall mounted

           1, 2, 3, or 4 products

           Choice of colour coded buttons

           Dispenses from any size chemical container

           Choice of Bib-type (standard), Aire-Gap™ or

           Flex-Gap™ backflow preventers

           Optional universal bucket fill kit

           Up to 32 mix ratios per product valve

           Rugged stainless steel case

           Product/Application labels available (optional)

HOW THEY WORK:

Simply connect the SOLTECH Mixing Station to any water supply.  The push of a button quickly blends the desired mixture

of your chemical concentrate and water.  The clean, efficient, non-drip spouts provide the safe way to fill bottles without the

mess or whiplash of flexible tubing.

An optional seperate drip tray can be mounted below the Mixing Station to keep the floor clean and safe. This new drip tray

is designed to hold the chemical supply tubes in position.

The new SOLTECH Mixing Stations w/Spouts are available from one to five product size cases.  While the Mixing Centers

are designed to hold the concentrate in gallon size, these new Mixing Stations allow for use of liquid Bio Cleaning Product concentrate in any size container. Direct fill to spray bottle eliminates bulky storage racks or secondary holding jugs.

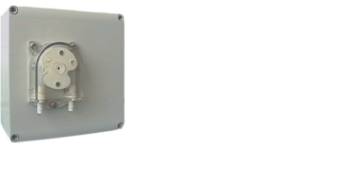

Automatic Dosing Dispenser

         For Drains, Interceptors, Grease Traps, Grey & Black Water Lines.



Programmable automatic dispenser for time controlled dosing of SOLTECH biological

drain cleaning products and solutions.

Using an automatic dispenser ensures the product is dosed on a daily basis to replenish the necessary bacteria population for effective degradation of the waste.

The dispenser is simple to programme giving up-to 4 on/off programmes per day and the robust peristaltic pump will provide long and reliable dosing with little maintenance.

Available in mains or battery powered options.

Features:

  • 4 On/Off programmes per 24Hrs
  • Simple 2 button programming
  • Programme Override facility
  • Memory protection
  • Robust peristaltic pump
  • Pump rate @ 100ml/min
  • Water resistant ABS enclosure
  • Mains (110/240 Volt) or Battery (24 Volt) powered
  • Dimensions 175mm x 175mm x 100mm

S3000 Programmable Dispenser
